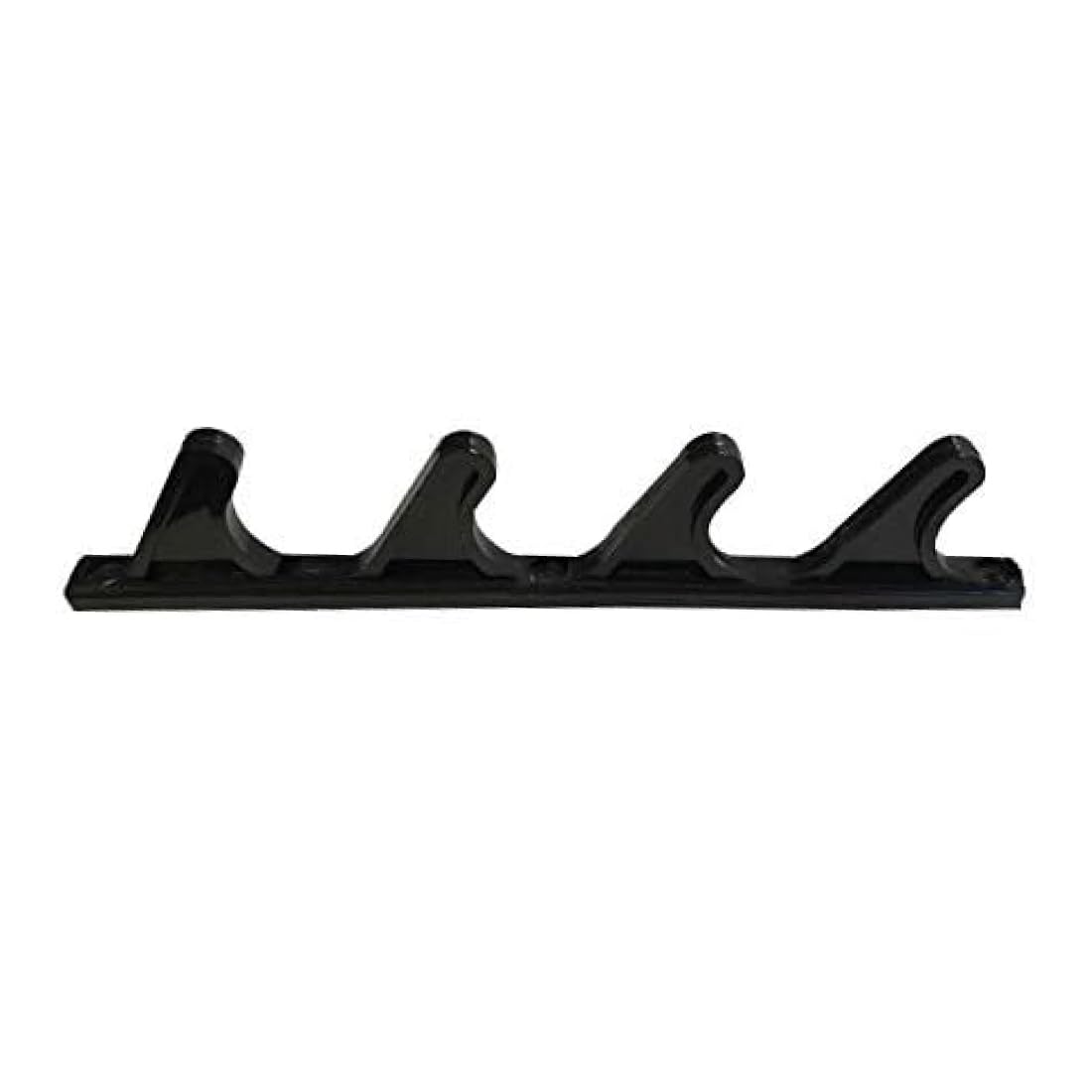

Overall measurement is 9 1/2' x 1 7/8' . Holes are located 4-1/4' from the top hole to the middle hole; 4 1/2' from the middle hole to the bottom hole. Recessed screw holes are 3/16' in diameter.

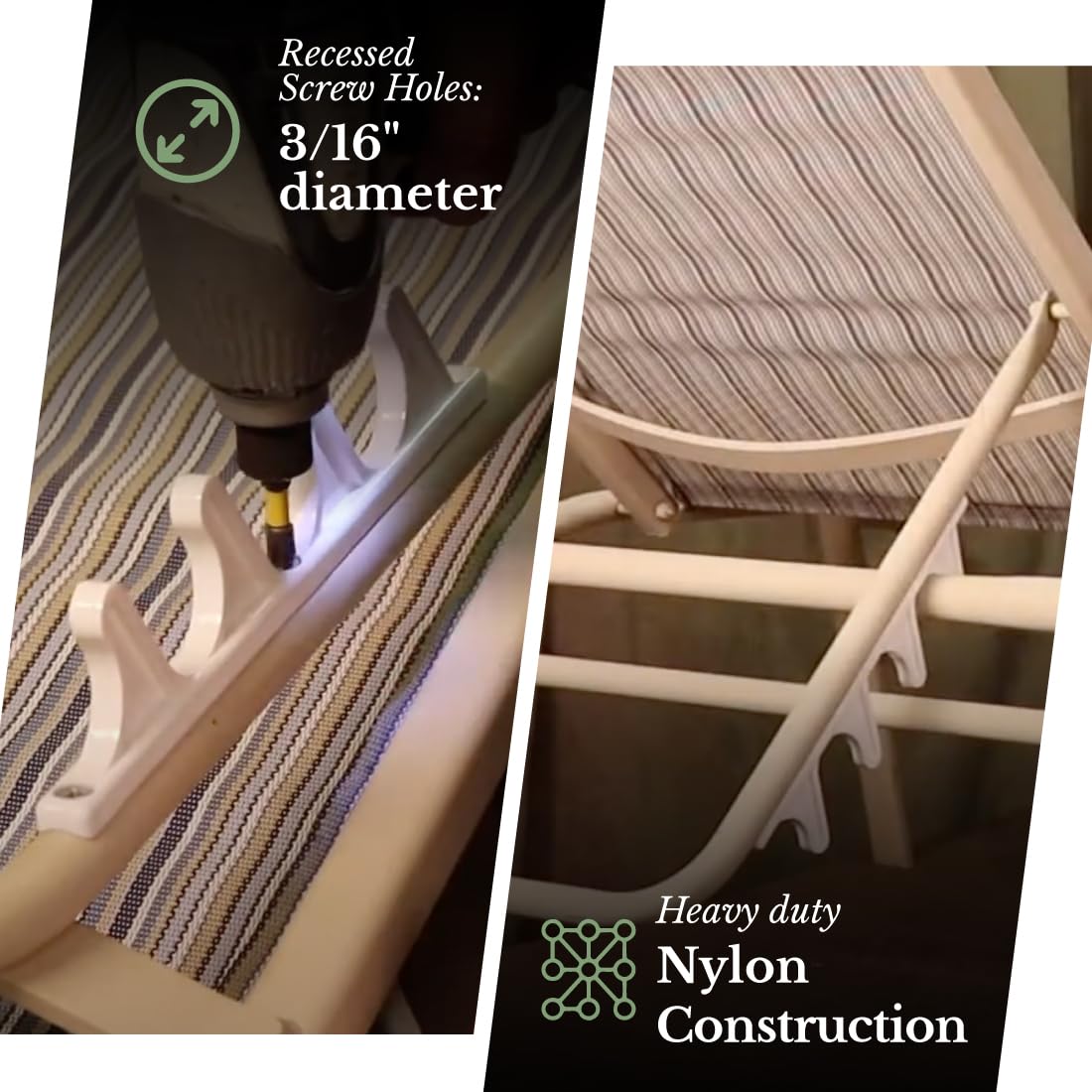

This part may be screwed or riveted to the frame. (Attachments not included) Stainless self tapping screws are suggested. The screw holes are recessed. The screw size would depend on the frame hole size. If you are replacing the exact same bracket, the holes should match up. If they do not, you can use the bracket as a template to mark and drill new holes. Make sure that the two brackets are lined up the same on either side of the frame.
